Description

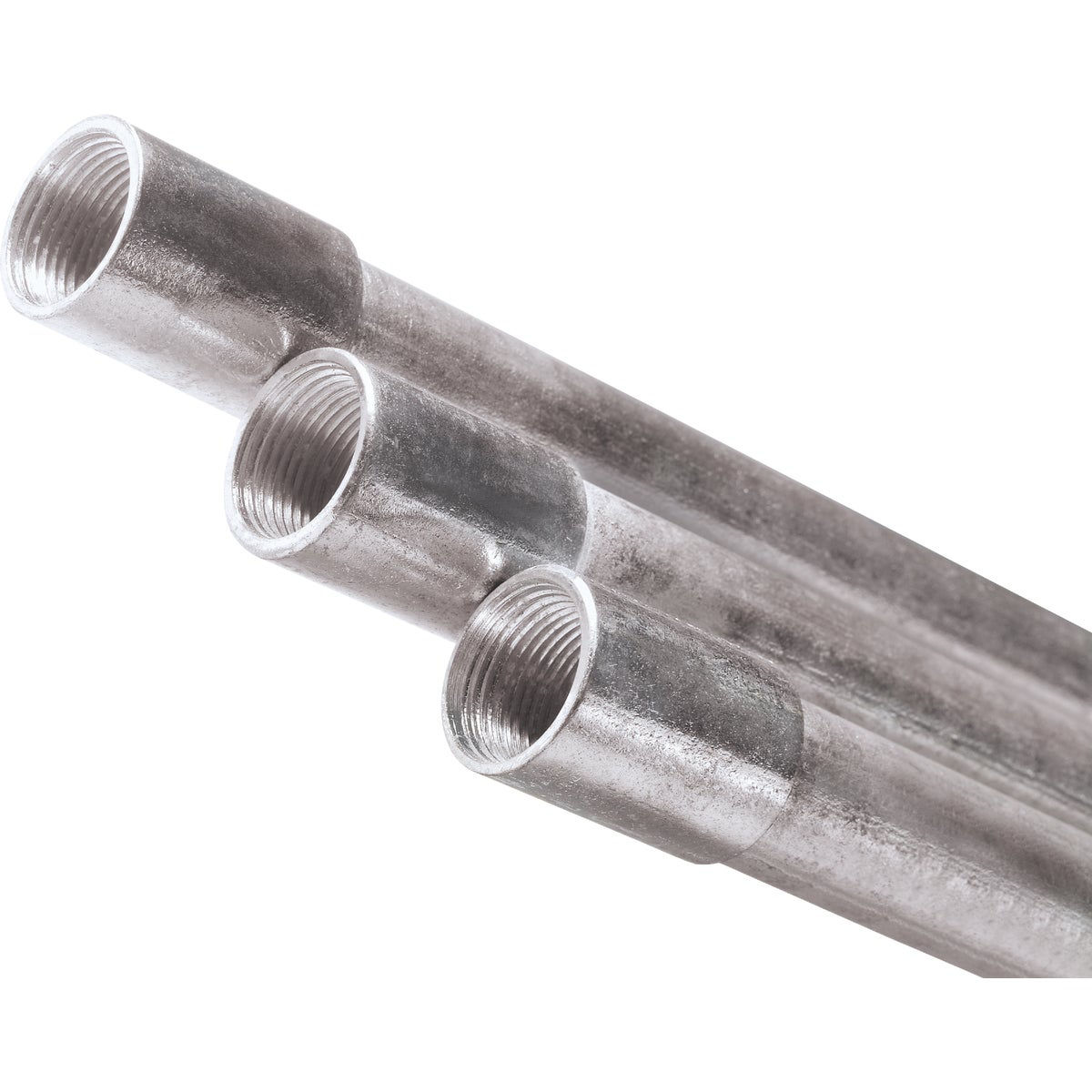

Galvanized rigid conduit. Ideal for jobs that require the physical protection that only the thickest walls can provide. Fabricated of hot-dipped galvanized steel inside and out, rigid metal conduit (RMC) is tough enough for use in outdoor applications, energy and manufacturing plants, and corrosive environments. Plus, it is easy to cut, bend, and thread on the job. Certification: UL-6,ANSI C80.1,NEC ARTICLE 344, NFPA 70: NEC250.118(2).
| Length | 10 Ft. |
| Material | Galvanized Steel |
| Weight | 16.10 Lb. |
| Certification | UL Listed |
| Conduit Type | Rigid Metal Conduit (RMC) |
| Minimum Interior Diameter | 1.063 In. |
| Maximum Interior Diameter | 1.063 In. |
| Minimum Exterior Diameter | 1.315 In. |
| Maximum Exterior Diameter | 1.315 In. |
| Diameter (In.) | 1 |
| Weight (Lb.) | 16.1 |
| Length (Ft.) | 10 |
| Threaded End | Yes |
| Brand | Wheatland |
| UPC | 00786692001036 |
| Product type | Metal Conduit |
