Description

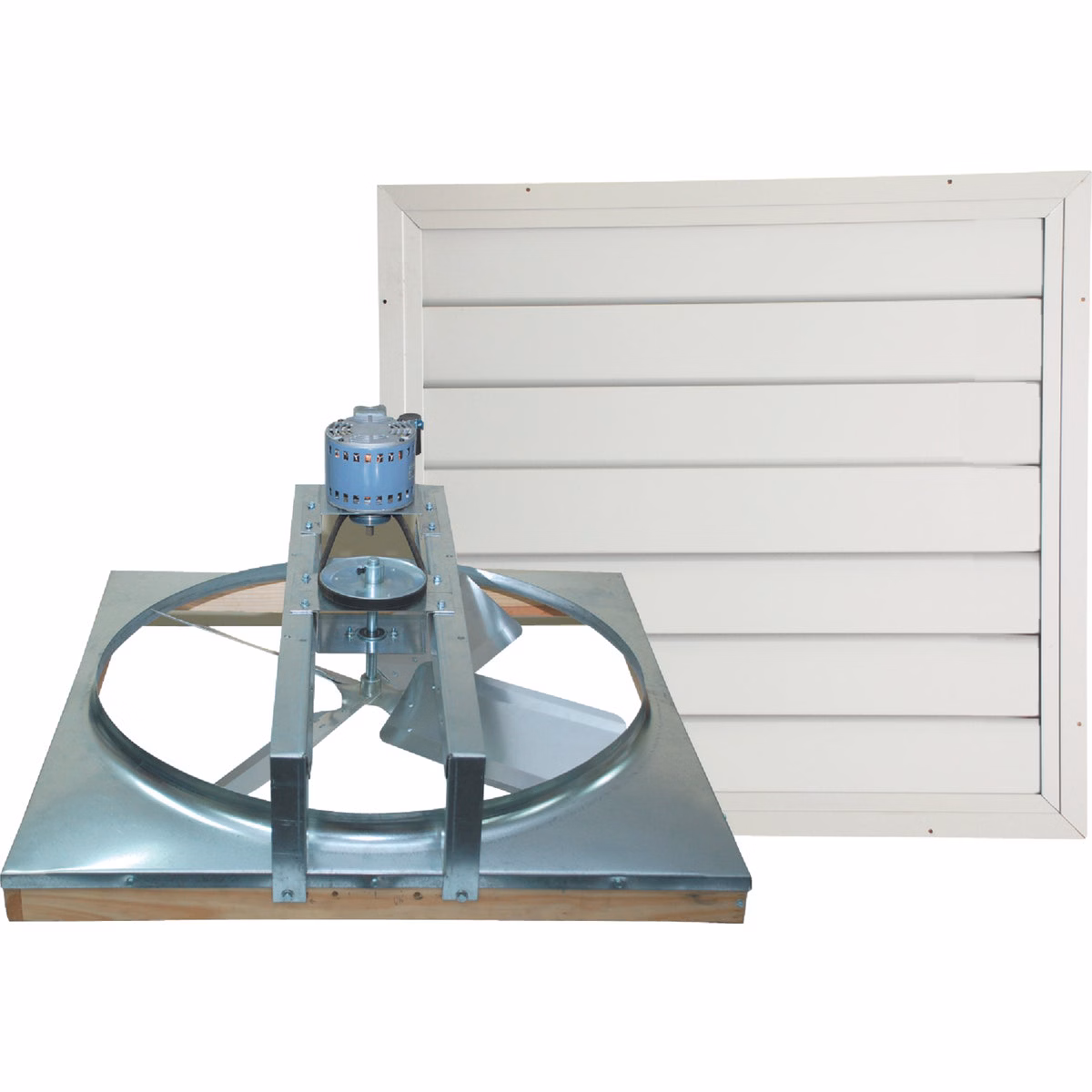

Belt drive whole house fan with white powder-coat finish shutter. 2-speed, thermally protected 1/3 HP (horsepower) PSC (Permanent Split Capacitor) motor. Precision balanced aluminum fan blade assembly. 4 fan blades for greater air movement. Includes 2-speed switch and wall plate. Joist-in or joist-out installation. Ceiling mount application only. Dual ball-bearing technology. Tough steel motor struts. Steel venturi for enhanced durability. 24 In. whole house fan is appropriate for homes with up to 1800 Sq. Ft. (square foot) attics. Requires a minimum of 8 to 10 Sq. Ft. of net free air exhaust vent area. 30 In. whole house fan is appropriate for homes with 2000 to 3000 Sq. Ft. attics. Requires a minimum of 10 to 12 Sq. Ft. of net free air exhaust vent area. 36 In. whole house fan is appropriate for homes with attics over 3200 sq. ft. Requires a minimum of 12 to 14 sq ft of net free air exhaust vent area. Veins run lengthwise on 24 In. and 30 In. – crosswise on 36 In. whole house fans. Center vein is stationary to allow no-cut joint installation. 10 year limited warranty.
| For Use With | Over 3200 Sq. Ft. |
| Size | 36 In. |
| Net Free Area | 12 to 14 Sq. Ft. |
| Rate | High 9700/Low 6800 |
| Drive Type | Belt Drive |
| Rough Opening | 37-1/4 In. x 33-1/2 In. |
| Shutter Inside Dimensions | 35 In. x 31-1/4 In. |
| Shutter Outside Dimensions | 39-1/4 In. x 35-3/4 In. |
| Brand | Ventamatic |
| UPC | 00047242542448 |
| Product type | Whole House Fan |
