Description

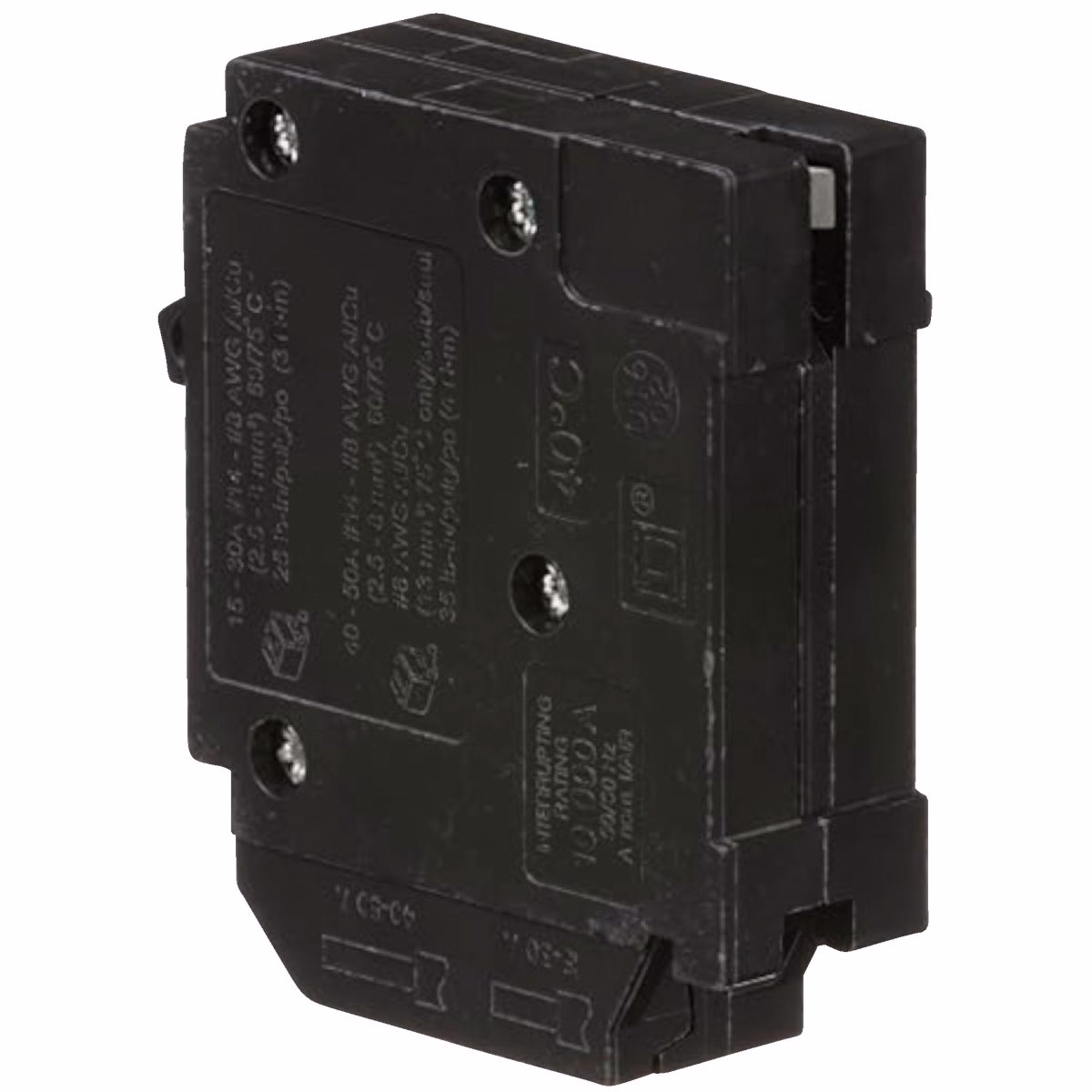

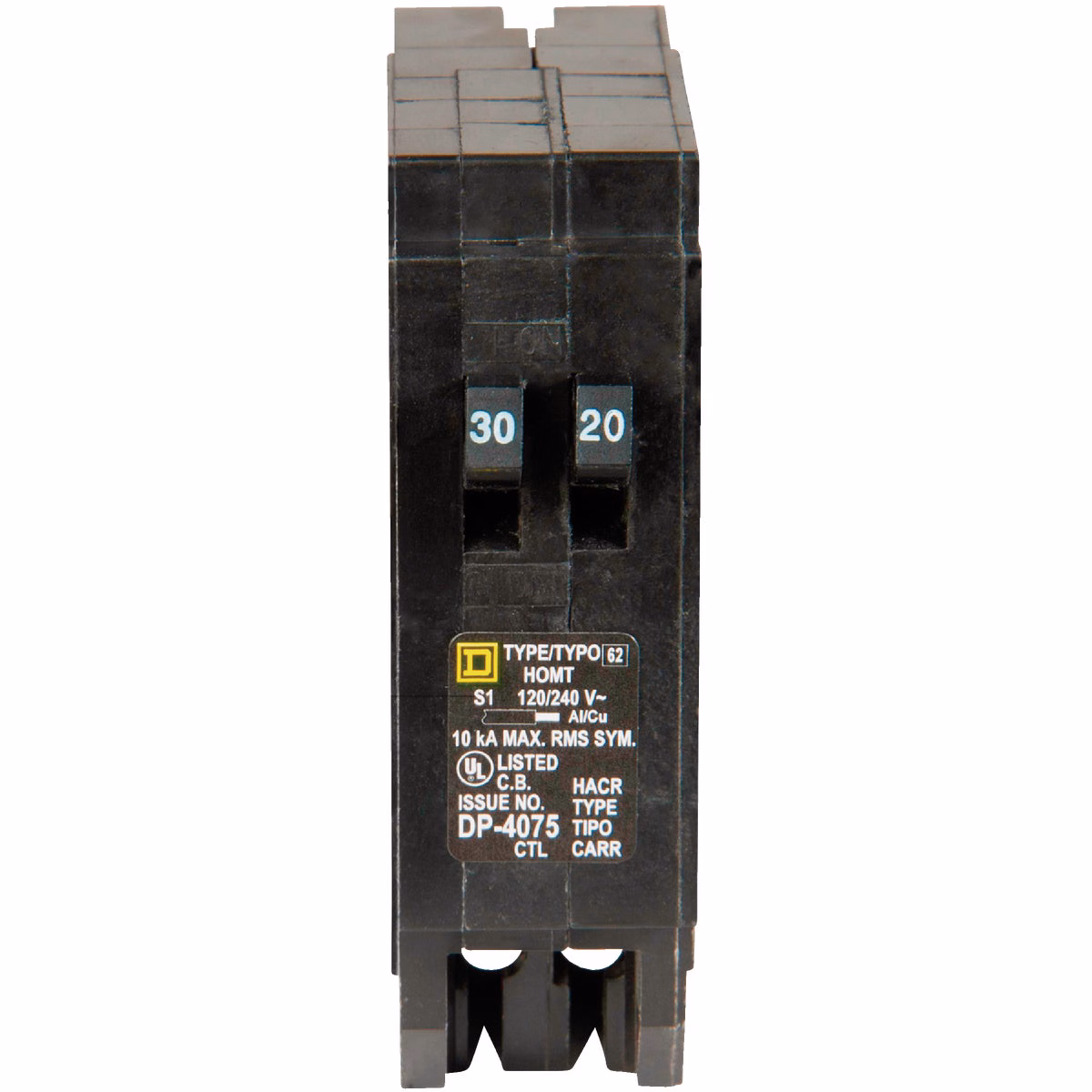

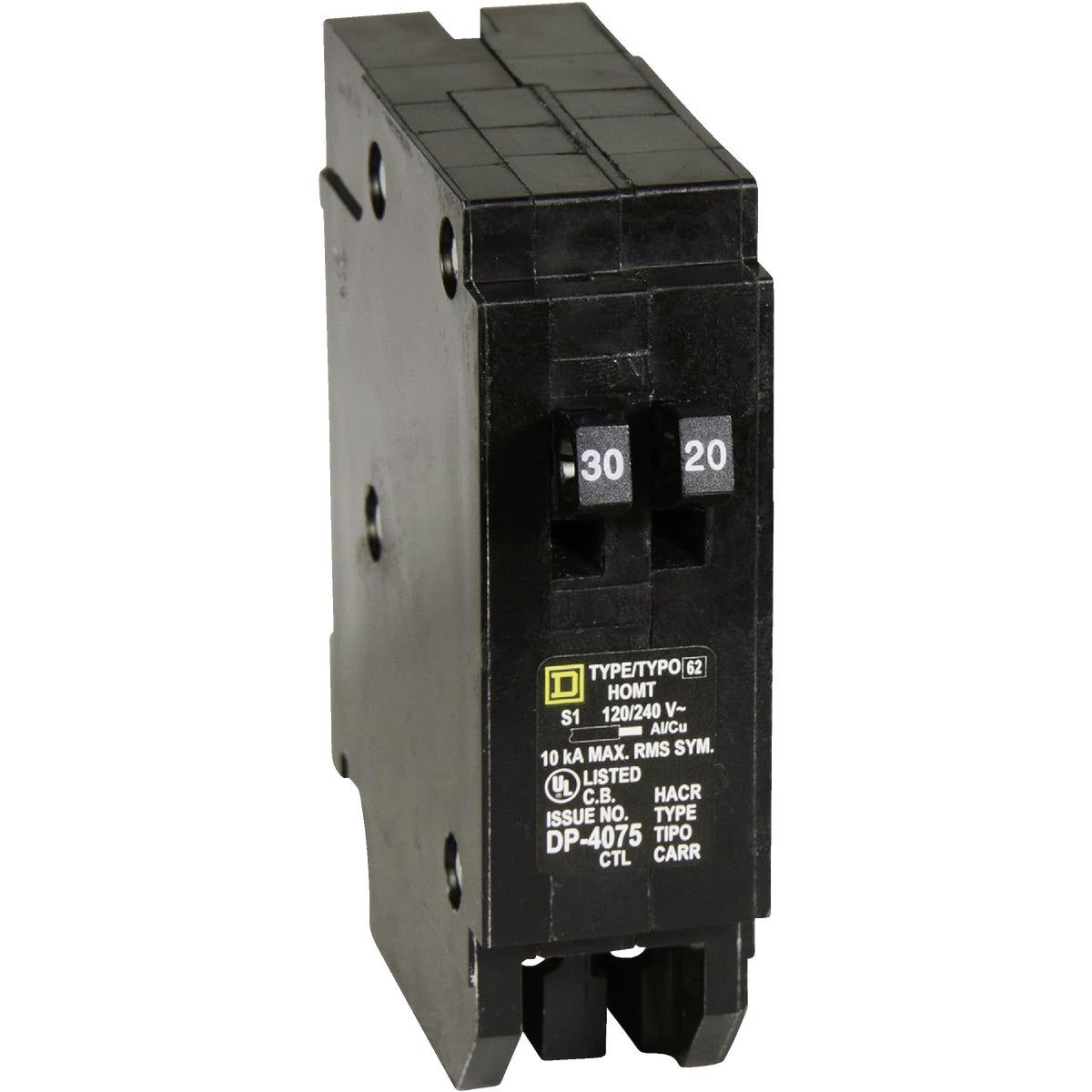

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This circuit breaker provides 10 kA breaking capacity. Will accept 14 AWG to 8 AWG copper or aluminum wire. UL listed.
| Amperage | 30/20 |
| Voltage | 120/240 |
| Number of Poles | Twin |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG |
| Certification | UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 1-Space |
| Width (In.) | 1 |
| Brand | Square D |
| UPC | 00785901403852 |
| Product type | Circuit Breaker |
