Description

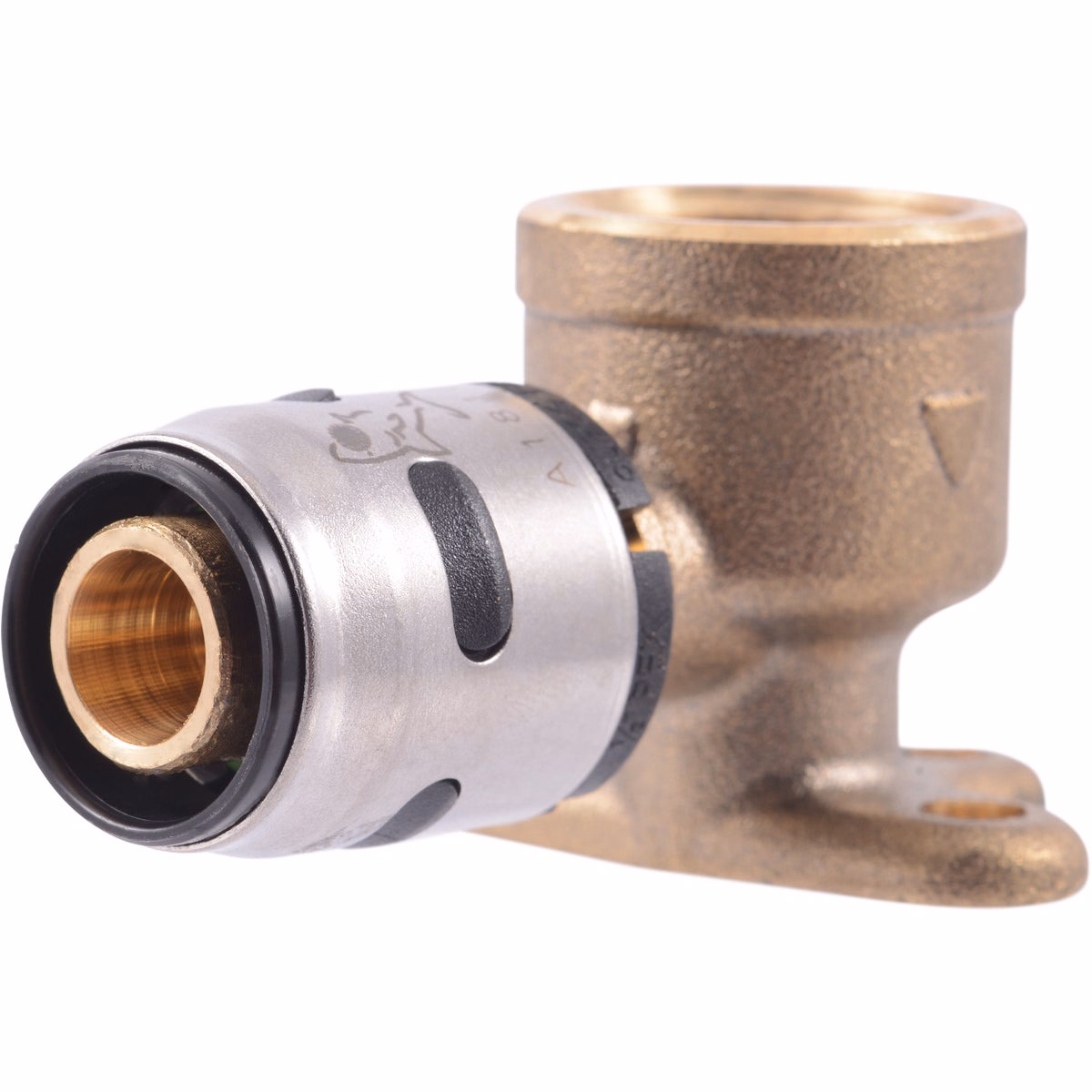

Drop ear elbow is used to transition from PEX to threaded pipe, such as shower arms or tub spouts. This push-to-connect fitting is designed to make leak-free PEX-to-PEX connections in potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. No soldering, clamps, unions or glue required. Insert PEX pipe into the fitting deep enough to be sealed by o-ring. Once inserted, stainless steel teeth bite down and grip the pipe. Green indicator ring will display in the slots around the fitting to visually display that permanent inner-diameter connection is secure. Made of engineered polymer. Fittings are rated up to 80 psi @ 200 F, 100 psi @ 180 F, and 160 psi @ 73.4 F.
| Type | Drop Ear Push Elbow |
| Angle | 90 Deg. |
| Pressure Rating | 80 psi at 200 F, 160 psi at 73.4 F |
| Fitting Size 1 | 1/2 In. |
| Fitting Size 2 | 1/2 In. |
| Connection Type 1 | Push |
| Connection Type 2 | Push |
| Pressure Rating (psi) | 80 / 160 |
| Maximum Working Temperature (F) | 200 / 73.4 |
| Fitting Type | Elbow |
| Brand | SHARKBITE |
| UPC | 00697285043954 |
| Product type | Plastic Elbow |
