Description

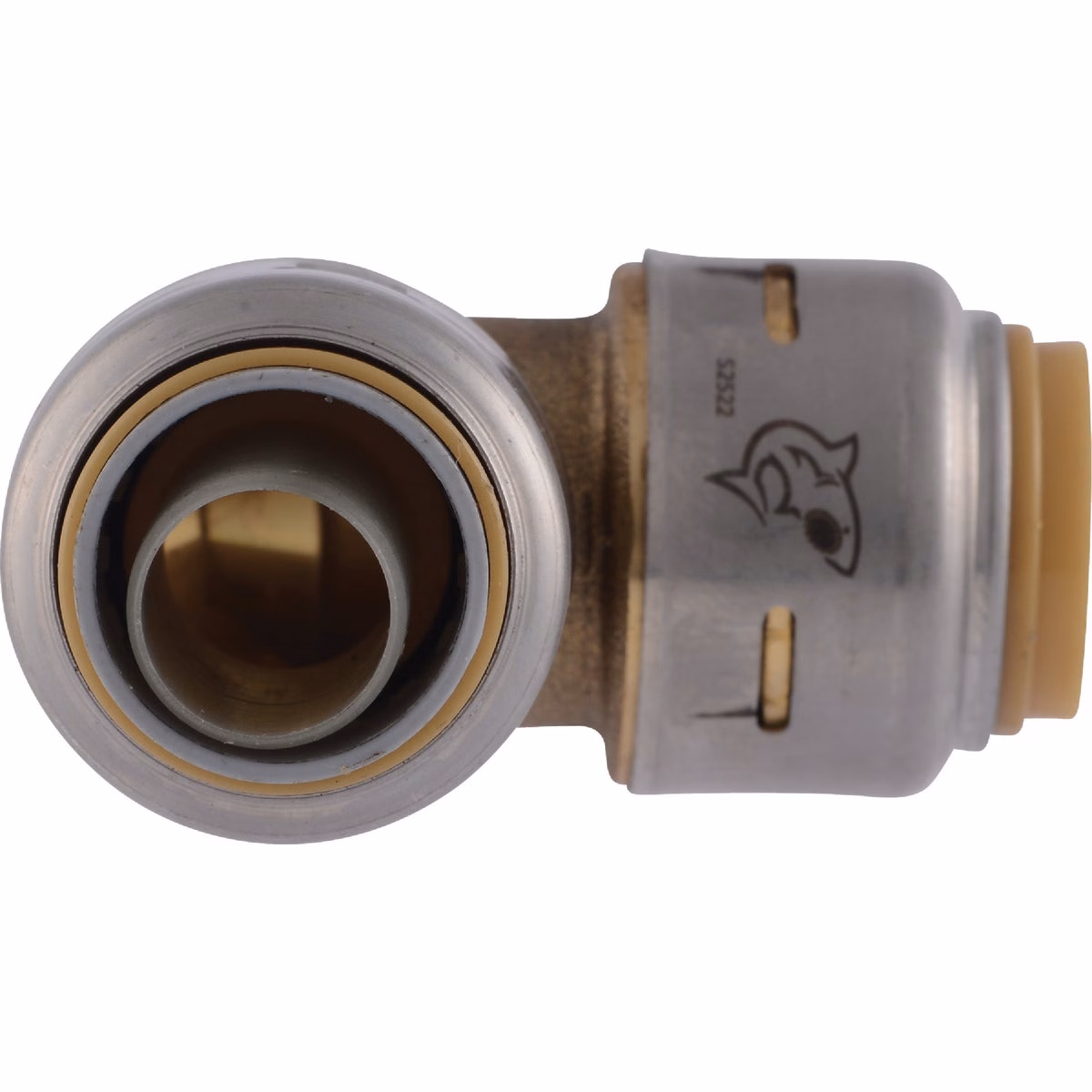

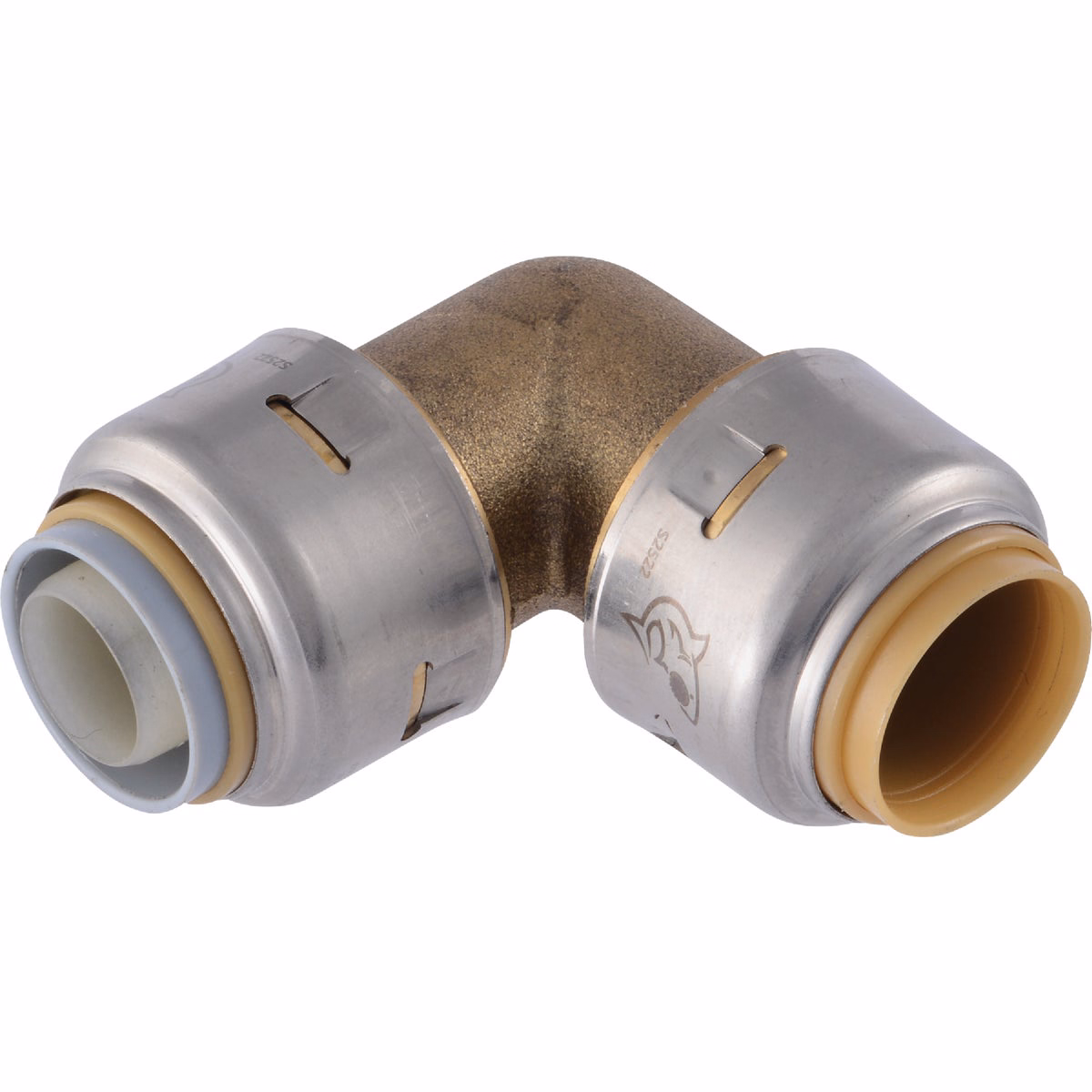

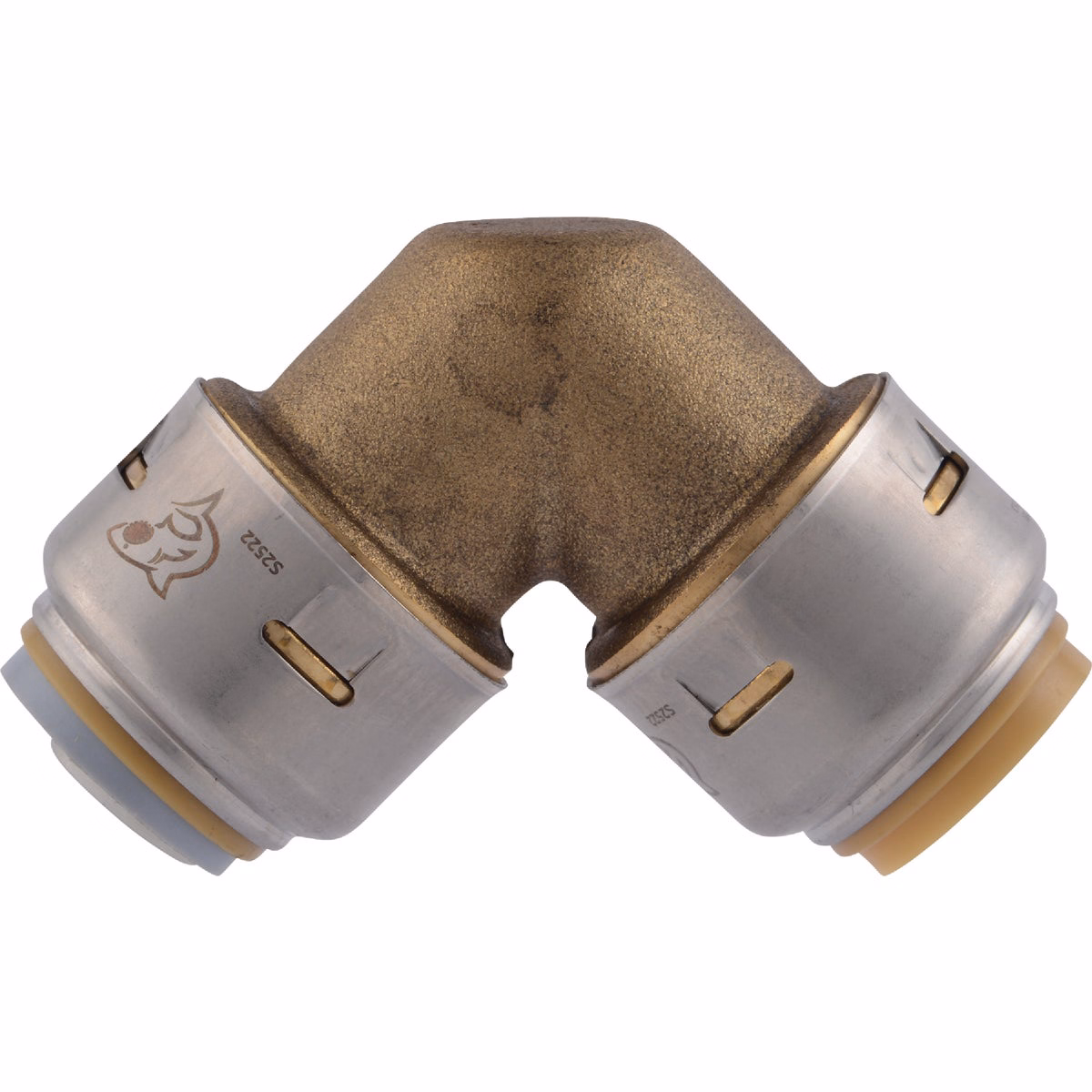

SharkBite Max push-to-connect fittings allow you make pipe connections with half the insertion effort while withstanding double the burst pressure. Featuring a newly designed stainless-steel retainer, SharkBite Max delivers additional strength and durability while providing a 250 psi pressure rating. Color-coordinated collars on the Brass Push Polybutylene 90 Transition Elbow help to identify which side goes with which pipe – the gray collar end is compatible with polybutylene pipe and the tan collar end is compatible with PEX, copper, CPVC, PE-RT and HDPE pipe. Innovative push-to-connect technology for quick and easy installation, even in tight spaces. Fittings are certified to 200 F, 250 psi. Third-party listed, compliant with applicable U.S. and Canadian plumbing codes. 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. Five-year warranty when properly installed with HDPE SDR-9. Patented technology.
| Material | Brass |
| For Use With | Underground/Behind-The-Wall |
| Type | Push Elbow |
| Angle | 90 Deg. |
| Pressure Rating | 200 psi |
| Temperature Rating | 200 F |
| Fitting Size 1 | 1/2 In. |
| Fitting Size 2 | 1/2 In. |
| Connection Type 1 | Barb |
| Connection Type 2 | FIP |
| Pressure Rating (psi) | 200 |
| Maximum Working Temperature (F) | 200 |
| Brand | SHARKBITE |
| UPC | 00697285059948 |
| Product type | Brass Elbow |
