Description

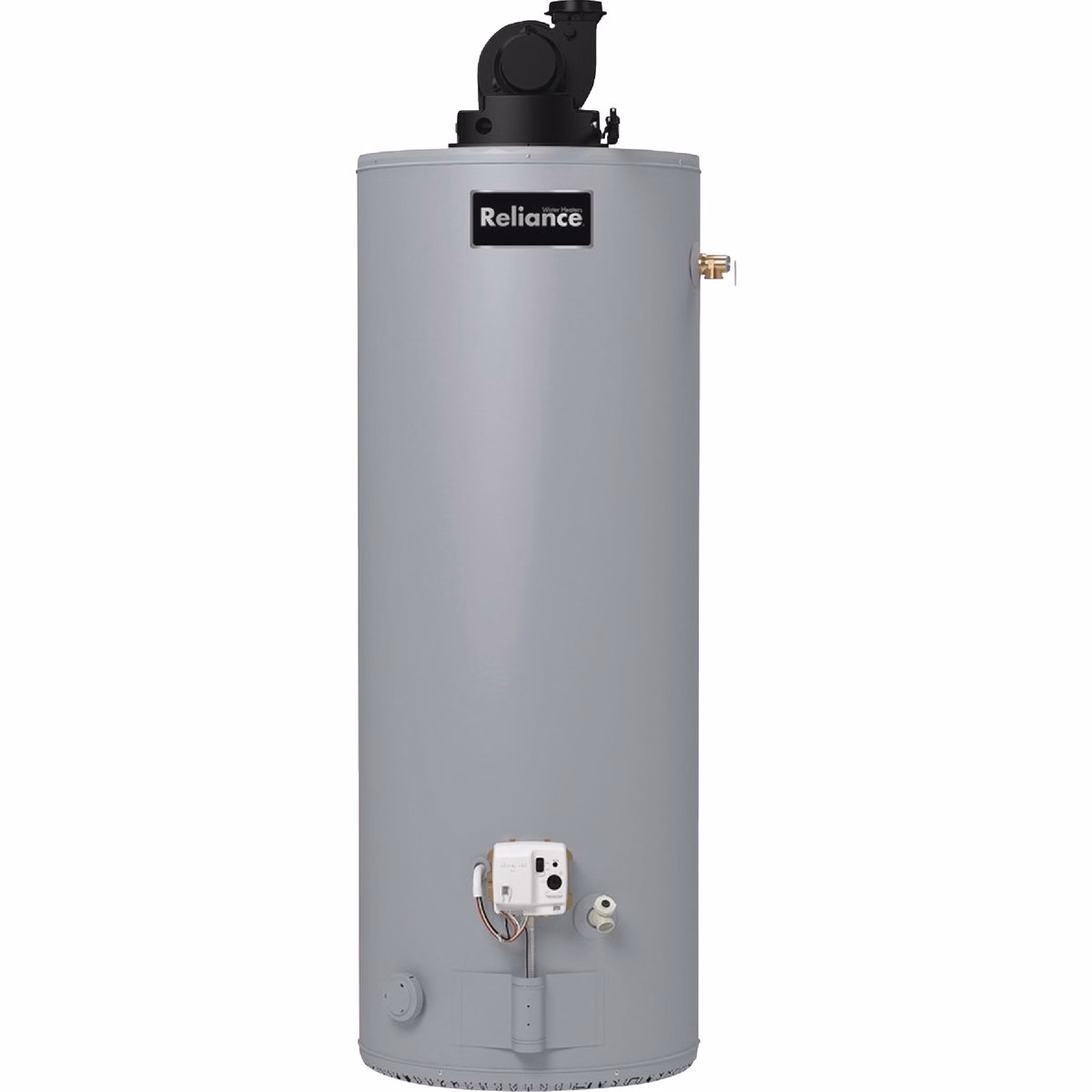

Natural gas water heater with power-vent 3-position (9, 12 and 3 o’clock) rotatable blower. Hot surface ignition, ABS, PVC, and PP vent material. Vent lengths up to 125 Ft. with 3 In. diameter venting (180 equivalent feet with 4 In. diameter venting); subtract 5 Ft. from vent length with each installed vent-elbow. Important notice: Allow an additional 4 In. to 10 In. to height dimension when installing a 90 Deg. vent-elbow on blower in 12 o’clock position. 120V (volt) required. 2 In. insulation. Factory installed T & P temperature & pressure) valve. 6 year tank and parts limited warranty. Energy Star Qualified.
| Width | 20 In. |
| Voltage | 120 |
| Type | Residential |
| Warranty | 6 Year |
| Capacity | 40 Gal. |
| Height | 70-1/4 In. |
| Depth | 20 In. |
| Wattage | Fan 110/120 |
| Fuel Type | Natural Gas |
| BTU Rating | 50,000 |
| Uniform Energy Factor | 0.70 |
| Vent Size | 2 In., 3 In., or 4 In. |
| For Mobile Home Use | No |
| Style | Tall |
| Recovery Rate | 44 gph |
| Family Size | 3 |
| Tank Capacity | 40 Gal. |
| Application Type | Residential |
| Width (In.) | 20 |
| Height (In.) | 68.5 |
| Depth (In.) | 20 |
| Nominal Tank Capacity (gallons) | 40 |
| Vent Diameter (In.) | 2, 3 or 4 |
| Recovery Rate at 90F Rise (gallons/hour) | 44 |
| Water Heater Profile | Tall |
| Nominal Tank Capacity (Gal.) | 40 |
| Recovery Rate at 90F Rise (Gal./Hr.) | 56 |
| Water Connection Size (In.) | 3/4 |
| Gas Connection Size (In.) | 1/2 |
| Brand | Reliance |
| UPC | 00091193003473 |
| Product type | Gas Water Heater |
