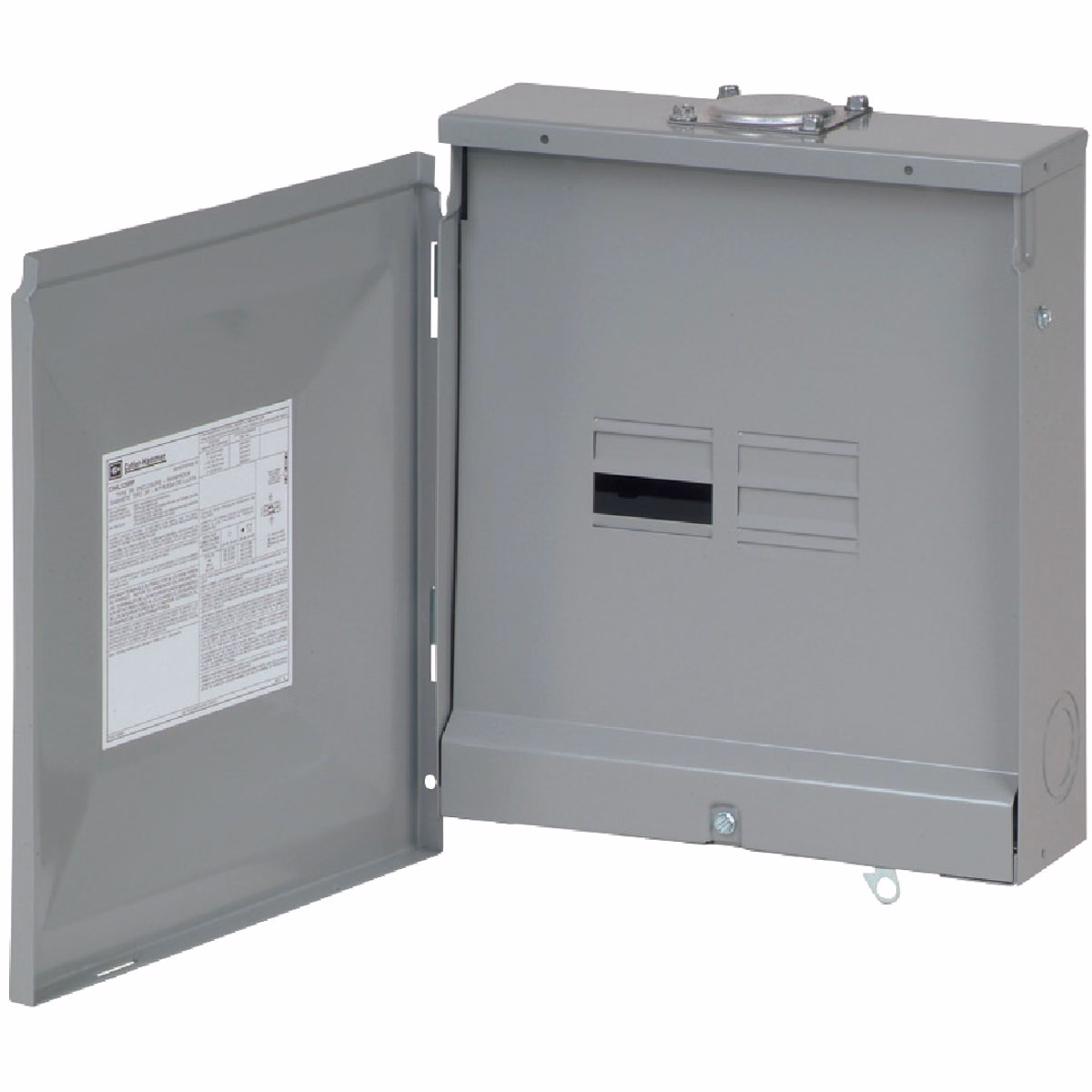

Eaton CH 125A 4-Space 4-Pole Rainproof Main Lug Load Center

Eaton CH 125A 4-Space 4-Pole Rainproof Main Lug Load Center

Single-phase, 3-wire main lug load center. Flush, surface, or combination mount. Cover included. Straight-in wiring, top or bottom. Pre-attached neutral bonding strap. Solid copper bus and branch fingers. 120/240V AC; 10,000 AIC. UL (Underwriter’s Laboratories) listed. Amperage 125 Voltage 120/240 Series CH Number Of Spaces 4 Max Number of Poles 4 Enclosure Type Rainproof Mount…

Original price was: $84.00.Current price is: $21.00.
Checkout
Category:

Description

Single-phase, 3-wire main lug load center. Flush, surface, or combination mount. Cover included. Straight-in wiring, top or bottom. Pre-attached neutral bonding strap. Solid copper bus and branch fingers. 120/240V AC; 10,000 AIC. UL (Underwriter’s Laboratories) listed.

Amperage 125
Voltage 120/240
Series CH
Number Of Spaces 4
Max Number of Poles 4
Enclosure Type Rainproof
Mount Type Surface
Phase Single
Wire Size #14 To 1/0
Certification UL Listed
Width (In.) 11
Height (In.) 13
Depth (In.) 3.69
Brand Eaton
UPC 00782114190517
Product type Main Lug Load Center
